Structured ITO-Coatings on Glass Substrates

Properties

Design Idea

Typical Applications

  • Liquid crystal displays (LCD) technology
  • Organic Light Emitting Diodes (OLED
  • Organic photovoltaic (solar) cells
  • Electrochemistry
  • Flat antennas for mobile communicatio
  • Conducting glass
Design Idea

Two standard glass substrate thicknesses are available:

  • 1.1 mm
  • 0.7 mm
Design Idea

Indium Tin Oxide (ITO) coated glass substrates offer:

  • Electrical conductivity and optical transparency

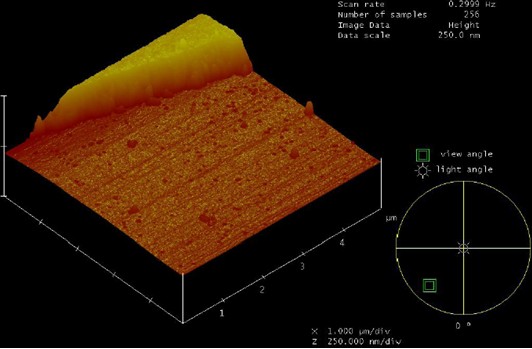

  • Homogenously flat ITO coatings
  • Low roughness
  • Uniform transmission homogeneity
The Naranjo ITO coated glass substrates combine excellent electric conductivity with a high transparency. Two standard glass substrate thicknesses are available: 1.1 and 0.7 mm.

Substrate dimension and ITO properties

Naranjo ITO Thickness (nm)

Resistivity (Ohm.sq)

Transparency

95

 18-20

>80%

130

13-15

> 80 %

ITO pattern

Customized pattern are prepared using photolithography. The mask design is prepared by the factory engineer and send for approval to the customer prior to production of the ITO covered glass plates.

Requested patterns can be supplied as AutoCad file or as any drawing clearly indicating dimensions.
